- BenQ Board Essential | RE03A
All Specifications
| Panel | |||
|---|---|---|---|
|
Screen size
65''
|
Screen size
75''
|
Screen size
86''
|
|
|
Panel type
IPS
|
Panel type
IPS
|
Panel type
IPS
|
|
|
Active area
1428.5 × 803.5 mm
|
Active area
1651.7 × 929.9 mm
|
Active area
1895.0 × 1066.0 mm
|
|
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
Aspect ratio
16:9
|
|
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
Resolution
UHD 3840 × 2160 pixels
|
|
|
Response time
8 ms
|
Response time
8 ms
|
Response time
8 ms
|
|
|
Color depth
10-bit
|
Color depth
10-bit
|
Color depth
10-bit
|
|
|
Orientation
Landscape
|
Orientation
Landscape
|
Orientation
Landscape
|
|
|
Operation hours
18 hours / 7 days
|
Operation hours
18 hours / 7 days
|
Operation hours
18 hours / 7 days
|
|
|
Panel brightness (typical)
450 nits
|
Panel brightness (typical)
450 nits
|
Panel brightness (typical)
450 nits
|
|
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
Contrast ratio (typical)
1200:1
|
|
|
Dynamic contrast ratio
30,000:1
|
Dynamic contrast ratio
30,000:1
|
Dynamic contrast ratio
30,000:1
|
|
|
Color gamut
72% NTSC
|
Color gamut
72% NTSC
|
Color gamut
72% NTSC
|
|
|
Light life (typical)
50,000 hrs
|
Light life (typical)
50,000 hrs
|
Light life (typical)
50,000 hrs
|
|
| Glass | |||
|
Germ-resistant coating
Availability dependent on region
|
Germ-resistant coating
Availability dependent on region
|
Germ-resistant coating
Availability dependent on region
|
|
|
Anti-glare coating
Yes
|
Anti-glare coating
Yes
|
Anti-glare coating
Yes
|
|
|
Hardness
9H tempered
|
Hardness
9H tempered
|
Hardness
9H tempered
|
|
| Touch screen | |||
|
Touch technology
Precision IR
|
Touch technology
Precision IR
|
Touch technology
Precision IR
|
|
|
Touch points
up to 40
|
Touch points
up to 40
|
Touch points
|
|
|
Response time
< 10 ms
|
Response time
< 10 ms
|
Response time
< 10 ms
|
|
| System | |||
|
Memory | Storage
4GB I 32GB
|
Memory | Storage
4GB I 32GB
|
Memory | Storage
4GB I 32GB
|
|
|
OS
Android 11.0
|
OS
Android 11.0
|
OS
Android 11.0
|
|
|
GPU
G52 2EE MC1
|
GPU
G52 2EE MC1
|
GPU
G52 2EE MC1
|
|
|
CPU
A55 × 4
|
CPU
A55 × 4
|
CPU
A55 × 4
|
|
| Connectivity | |||
|
Video Graphics Array (VGA)
1
|
Video Graphics Array (VGA)
1
|
Video Graphics Array (VGA)
1
|
|
|
HDMI (in | out)
3 × HDMI 2.0 | No
|
HDMI (in | out)
3 × HDMI 2.0 | No
|
HDMI (in | out)
3 × HDMI 2.0 | No
|
|
|
Display Port
1 × 1.2 | No
|
Display Port
1 × 1.2 | No
|
Display Port
1 × 1.2 | No
|
|
|
USB-A
1 × 2.0 + 3 × 3.0
|
USB-A
1 × 2.0 + 3 × 3.0
|
USB-A
1 × 2.0 + 3 × 3.0
|
|
|
USB-C
1 × 2.0
|
USB-C
1 × 2.0
|
USB-C
1 × 2.0
|
|
|
USB-B (for touch)
2 × 2.0
|
USB-B (for touch)
2 × 2.0
|
USB-B (for touch)
2 × 2.0
|
|
|
3.5 mm Line in (1)
PC Audio × 1
|
3.5 mm Line in (1)
PC Audio × 1
|
3.5 mm Line in (1)
PC Audio × 1
|
|
|
3.5 mm Line out
Earphone × 1
|
3.5 mm Line out
Earphone × 1
|
3.5 mm Line out
Earphone × 1
|
|
|
Slot-in PC (OPS)
1
|
Slot-in PC (OPS)
1
|
Slot-in PC (OPS)
1
|
|
|
SPDIF (in | out)
0 | 1 (optical)
|
SPDIF (in | out)
0 | 1 (optical)
|
SPDIF (in | out)
0 | 1 (optical)
|
|
|
Ethernet LAN
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
|
Ethernet LAN
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
|
Ethernet LAN
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
|
|
|
RS-232
1
|
RS-232
1
|
RS-232
1
|
|
| Built-in peripherals | |||
|
Ambient light sensor
Yes
|
Ambient light sensor
Yes
|
Ambient light sensor
Yes
|
|
|
IR sensor
Yes
|
IR sensor
Yes
|
IR sensor
Yes
|
|
|
Speaker
2 × 20 W (max)
|
Speaker
2 × 20 W (max)
|
Speaker
2 × 20 W (max)
|
|
| Power | |||
|
ENERGY STAR®
Yes
|
ENERGY STAR®
Yes
|
ENERGY STAR®
Yes
|
|
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
Power
AC 100-240V 50/60Hz
|
|
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
Standby power consumption
<0.5 W
|
|
|
Typical power consumption
124 W
|
Typical power consumption
135 W
|
Typical power consumption
154 W
|
|
| Physical | |||
|

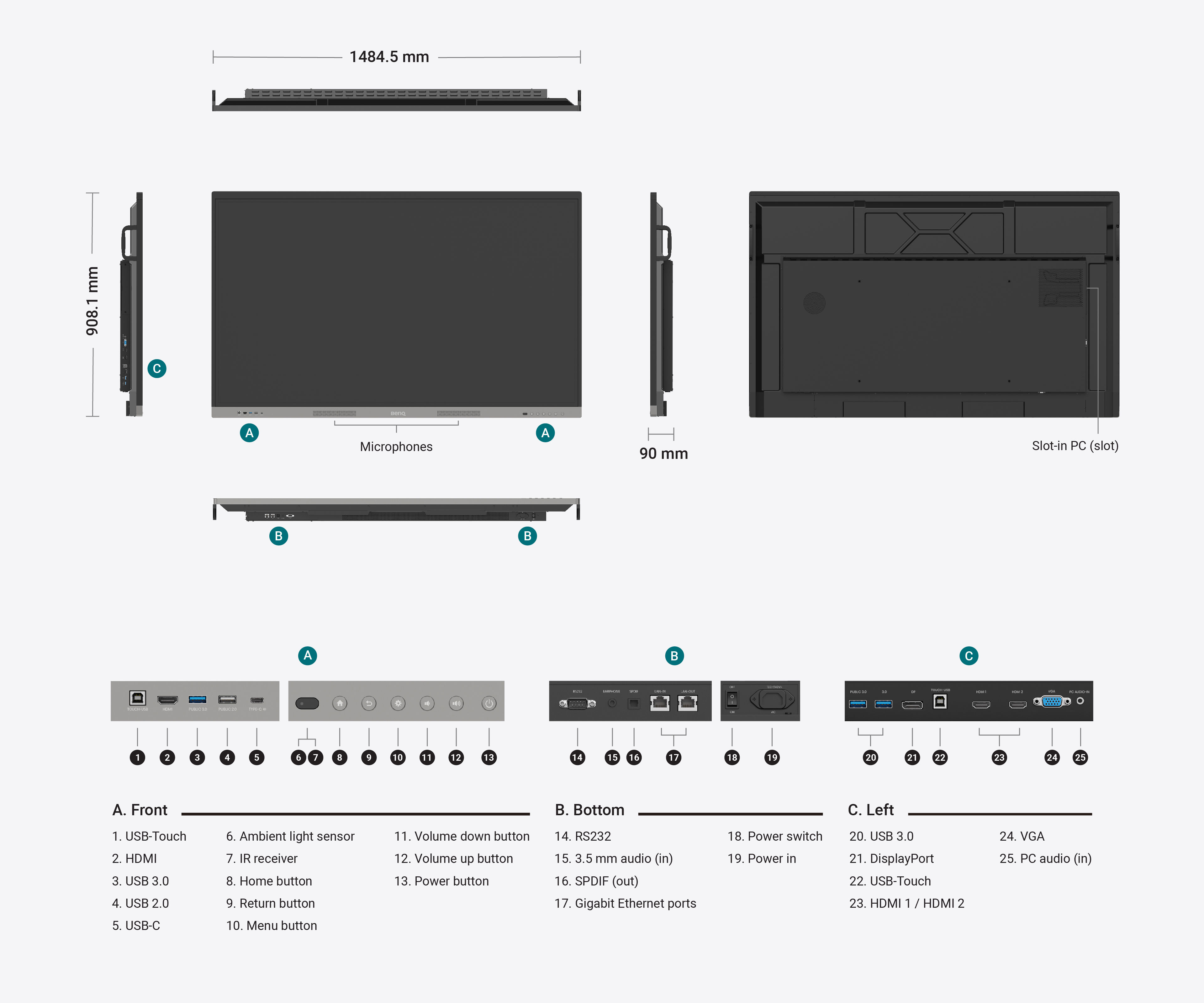

Dimensions (W x H x D)
1484.5 × 908.1 × 90 mm (58.4 × 35.8 × 3.5 inch)
|
Dimensions (W x H x D)
1705.7 × 1032.3 × 90.2 mm (67.2 × 40.6 × 3.6 inch)
|

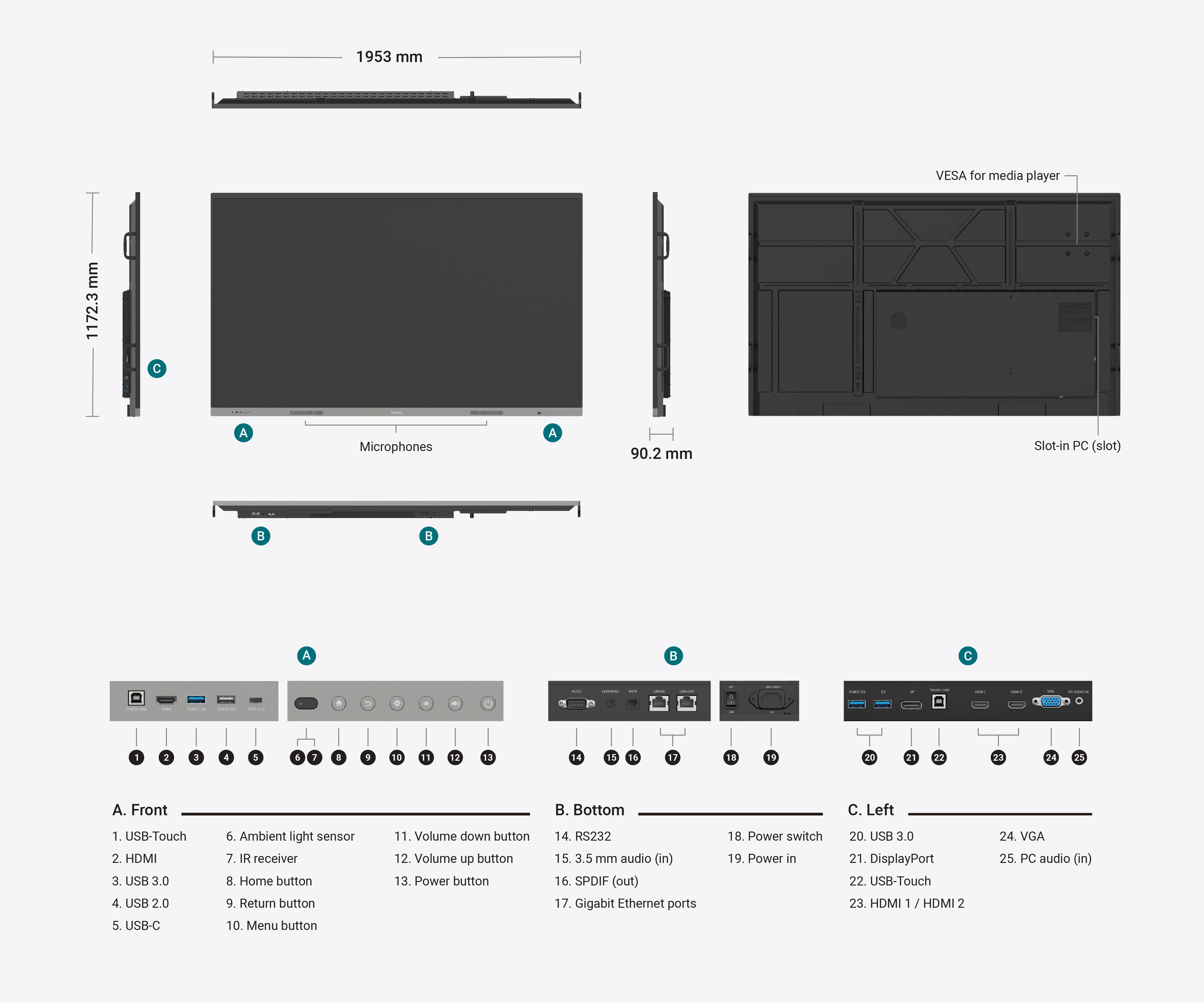

Dimensions (W x H x D)
1953 × 1172.3 × 90.2 mm (76.9 × 46.2 × 3.6 inch)
|
|
|
Shipping dimensions (W x H x D)
1665 × 1040 × 225 mm (65.5 × 40.9 × 8.9 inch)
|
Shipping dimensions (W x H x D)
1880 × 1160 × 230 mm (74.0 × 45.7 × 9.1 inch)
|
Shipping dimensions (W x H x D)
2090 × 1285 × 215 mm (82.3 × 50.6 × 8.5 inch)
|
|
|
Weight (product I shipping)
38.6 kg I 51.9kg (85.1 lbs | 114.4 lbs)
|
Weight (product I shipping)
50.4 kg I 66.5kg (111.1 lbs| 146.6 lbs)
|
Weight (product I shipping)
63.1 kg I 81.1kg (139.1 lbs| 178.8 lbs)
|
|
|
Mount (screws)
VESA 600 × 400 mm (4 × M8 × 25L)
|
Mount (screws)
VESA 800 × 600 mm (4 × M8 × 25L)
|
Mount (screws)
VESA 800 × 400 mm (4 × M8 × 25L)
|
|
| Environment | |||
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
|
|
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
Storage temperature
-10°C ~ 60°C | 14°F ~ 140°F
|
|
|
Storage humidity
10% ~ 90% RH Non-Condensing
|
Storage humidity
10% ~ 90% RH Non-Condensing
|
Storage humidity
10% ~ 90% RH Non-Condensing
|
|
|
Operating humidity
20% ~ 85% RH non-condensing
|
Operating humidity
20% ~ 85% RH non-condensing
|
Operating humidity
20% ~ 85% RH non-condensing
|
|
| Software | |||
|
Whiteboarding
EZWrite 6.0
|
Whiteboarding
EZWrite 6.0
|
Whiteboarding
EZWrite 6.0
|
|
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
Wireless screen sharing
InstaShare 2
|
|
|
Device management
DMS
|
Device management
DMS
|
Device management
DMS
|
|
|
Account management
AMS
|
Account management
AMS
|
Account management
AMS
|
|
|
Quick access tool
Floating Tool
|
Quick access tool
Floating Tool
|
Quick access tool
Floating Tool
|
|
|
Broadcast system
X-Sign Broadcast
|
Broadcast system
X-Sign Broadcast
|
Broadcast system
X-Sign Broadcast
|
|
|
Flicker Free
Yes
|
Flicker Free
Yes
|
Flicker Free
Yes
|
|
|
Low Blue Light
Yes
|
Low Blue Light
Yes
|
Low Blue Light
Yes
|
|
| Accessories | |||
|
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
|
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
|
Cables
1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
|
|
|
Wall Mount (with shipment)
1
|
Wall Mount (with shipment)
1
|
Wall Mount (with shipment)
1
|
|
|
Stylus
2
|
Stylus
2
|
Stylus
2
|
|
|
Remote control
1
|
Remote control
1
|
Remote control
1
|
